Mga pagtutukoy

Mga pagtutukoy ng VNH7013XP-E Tech
STMicroelectronics - VNH7013XP-E Teknikal na Mga Pagtukoy, Mga Katangian, Mga Parameter at Mga Bahagi na may Katulad na Mga Pagtukoy sa STMicroelectronics - VNH7013XP-E

Katangian ng produkto	Halaga ng katangian
Manufacturer	STMicroelectronics
Boltahe - Supply	72V (Max)
Boltahe - I-load	-
teknolohiya	Power MOSFET

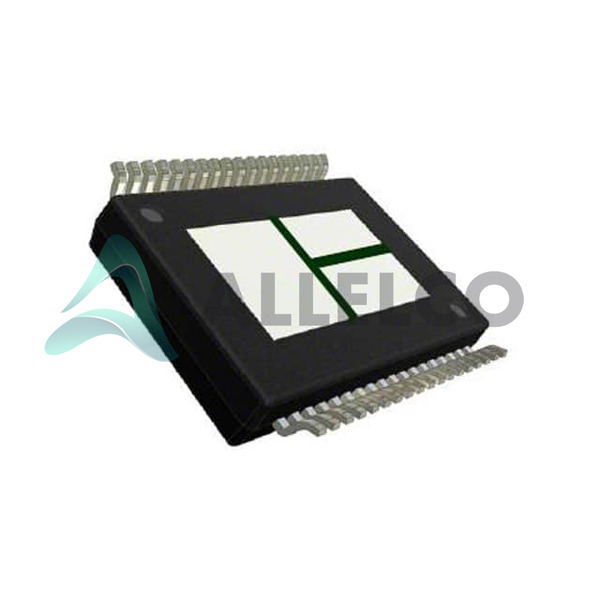

Supplier aparato Package	PowerSSO-36 TP
serye	VIPower™
Rds On (Typ)	7.3mOhm LS, 5.7mOhm HS
Package / Kaso	36-PowerBFSOP (0.295', 7.50mm Width)
Package	Tube
output Configuration	Half Bridge (2)

Katangian ng produkto	Halaga ng katangian
operating Temperature	-40°C ~ 175°C (TJ)
Salalayan Type	Surface Mount
Uri ng Load	Inductive
interface	Logic
Mga tampok	-
fault Protection	Over Temperature
Current - Peak Output	-
Current - Output / Channel	40A
Base Number Product	VNH7013
aplikasyon	DC Motors, General Purpose

Pag -uuri ng Kapaligiran at Pag -export

KATANGIAN	PAGLALARAWAN
Katayuan ng RoHs	Sumunod ang ROHS3
Antas ng Sensitivity ng kahalumigmigan (MSL)	3 (168 Hours)
Maabot ang katayuan	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001

Mga bahagi na may katulad na mga pagtutukoy

Ang tatlong bahagi sa kanan ay may katulad na mga pagtutukoy sa STMicroelectronics VNH7013XP-E.

Katangian ng produkto
Numero ng Bahagi	VNH7013XP-E	VNH7013XPTR-E	VNH5200AS-E	VNH5180ATR-E
Manufacturer	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
interface	Logic	Logic	On/Off	Parallel, PWM
Current - Output / Channel	40A	40A	-	-
Boltahe - I-load	-	-	5.5V ~ 18V	5.5V ~ 18V
Mga tampok	-	-	-	-
Uri ng Load	Inductive	Inductive	-	-
teknolohiya	Power MOSFET	Power MOSFET	Power MOSFET	Power MOSFET
operating Temperature	-40°C ~ 175°C (TJ)	-40°C ~ 175°C (TJ)	-40°C ~ 150°C (TJ)	-40°C ~ 150°C (TJ)
output Configuration	Half Bridge (2)	Half Bridge (2)	Half Bridge (2)	Half Bridge (2)
fault Protection	Over Temperature	Over Temperature	-	-
serye	VIPower™	VIPower™	Automotive	ECOPACK®, VIPower™
Supplier aparato Package	PowerSSO-36 TP	PowerSSO-36 TP	16-SO	PowerSSO-36 TP
Salalayan Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Rds On (Typ)	7.3mOhm LS, 5.7mOhm HS	7.3mOhm LS, 5.7mOhm HS	-	-
Current - Peak Output	-	-	-	-
Base Number Product	VNH7013	VNH7013	VNH5200	VNH5180
Boltahe - Supply	72V (Max)	72V (Max)	5.5V ~ 18V	5.5V ~ 18V
aplikasyon	DC Motors, General Purpose	DC Motors, General Purpose	Automotive	Automotive
Package / Kaso	36-PowerBFSOP (0.295', 7.50mm Width)	36-PowerBFSOP (0.295', 7.50mm Width)	16-SOIC (0.154", 3.90mm Width)	36-PowerBFSOP (0.295", 7.50mm Width)
Package	Tube	Tape & Reel (TR)	Tube	Tape & Reel (TR)
