Bahay Mga Produkto Discrete Semiconductor Produkto Transistors - IGBTs - Single~~STGD4M65DF2~~

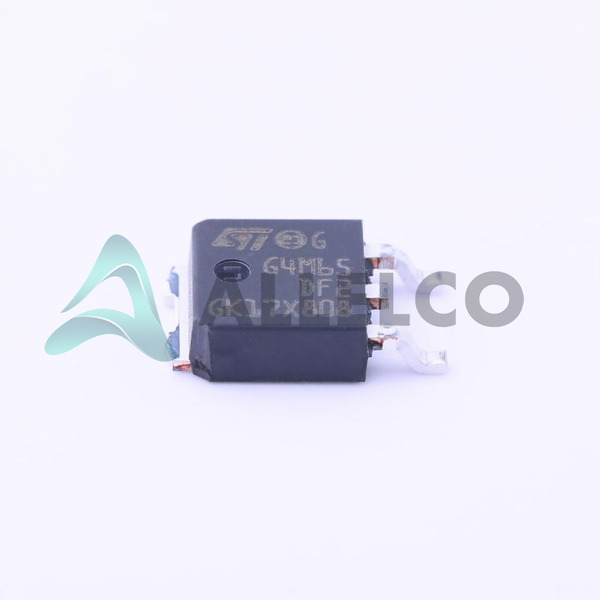

Ang imahe ay maaaring representasyon.
Tingnan ang mga pagtutukoy para sa mga detalye ng produkto.

~~Paborito~~

IPAHAYAG ANG PAGPIPILIAN

Paraan ng Pagbabayad

STGD4M65DF2 - STMicroelectronics

Name: STMicroelectronics STGD4M65DF2
Brand: STMicroelectronics
SKU: STGD4M65DF2
Price: 0.303 USD
Availability: InStock
Rating: 5 (4 reviews)

Manufacturer Numero ng Bahagi: STGD4M65DF2

Manufacturer: STMicroelectronics

Allelco Numero ng Bahagi: 32D-STGD4M65DF2

Garantiya: 1 taong Allelco Warranty - Alamin ang higit pa

Mga Deskripsyon ng Mga Bahagi: TRENCH GATE FIELD-STOP IGBT, M S

Package: DPAK

Data sheet: 1.STGD4M65DF2.pdf ...

Datasheets
STGD4M65DF2 Datasheet.pdf

Disenyo/Pagtukoy ng PCN
New Lead Frame Design 17/Mar/2023.pdf

PCN Assembly/Pinagmulan
STGDYYY 07/Dec/2017.pdf

PCN packaging
Mult Dev Inner Box Chg 9/Dec/2021.pdf

Katayuan ng RoHs: Sumunod ang ROHS3

~~Paghambingin~~

Ang aming sertipikasyon

Sa stock: 69860

Presyo ng isang piraso: $0.43
Subtotal: $0.00

Gusto mo ng isang mas mahusay na presyo?
Idagdag sa CART at Isumite ang RFQ ngayon, makikipag -ugnay kami kaagad sa iyo.

Dami	Presyo ng isang piraso	Ext.Presyo
1+	$0.43	$0.43
10+	$0.381	$3.81
30+	$0.354	$10.62
100+	$0.323	$32.30
500+	$0.309	$154.50
1000+	$0.303	$303.00

Ang mga presyo sa itaas ay hindi kasama ang mga buwis at mga rate ng kargamento, na kinakalkula sa mga pahina ng order.

IPAHAYAG ANG PAGPIPILIAN

Paraan ng Pagbabayad

Ang aming sertipikasyon

Mga pagtutukoy

Mga pagtutukoy ng STGD4M65DF2 Tech
STMicroelectronics - STGD4M65DF2 Teknikal na Mga Pagtukoy, Mga Katangian, Mga Parameter at Mga Bahagi na may Katulad na Mga Pagtukoy sa STMicroelectronics - STGD4M65DF2

Katangian ng produkto	Halaga ng katangian
Manufacturer	STMicroelectronics
Boltahe - Kolektor Emitter Breakdown (Max)	650 V
Vce (on) (Max) @ Vge, Ic	2.1V @ 15V, 4A
Test Kundisyon	400V, 4A, 47Ohm, 15V
Td (on / off) @ 25 ° C	12ns/86ns
Ang paglipat Energy	40µJ (on), 136µJ (off)
Supplier aparato Package	DPAK
serye	M
Reverse Recovery Time (trr)	133 ns
Power - Max	68 W

Katangian ng produkto	Halaga ng katangian
Package / Kaso	TO-252-3, DPak (2 Leads + Tab), SC-63
Package	Tape & Reel (TR)
operating Temperature	-55°C ~ 175°C (TJ)
Salalayan Type	Surface Mount
Type input	Standard
Type IGBT	Trench Field Stop
gate charge	15.2 nC
Current - Kolektor Pulsed (Icm)	16 A
Current - kolektor (Ic) (Max)	8 A
Base Number Product	STGD4

Pag -uuri ng Kapaligiran at Pag -export

KATANGIAN	PAGLALARAWAN
Katayuan ng RoHs	Sumunod ang ROHS3
Antas ng Sensitivity ng kahalumigmigan (MSL)	1 (Unlimited)
Maabot ang katayuan	REACH Unaffected
ECCN	EAR99

Mga bahagi na may katulad na mga pagtutukoy

Ang tatlong bahagi sa kanan ay may katulad na mga pagtutukoy sa STMicroelectronics STGD4M65DF2.

Katangian ng produkto
Numero ng Bahagi	STGD6M65DF2	STGD5H60DF	STGD3NB60SD-1	STGD5NB120SZ-1
Manufacturer	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Type input	-	-	-	Differential
Vce (on) (Max) @ Vge, Ic	-	-	-	-
serye	-	-	-	-
Current - Kolektor Pulsed (Icm)	-	-	-	-
Salalayan Type	-	Surface Mount	Through Hole	Surface Mount
gate charge	-	-	-	-
Boltahe - Kolektor Emitter Breakdown (Max)	-	-	-	-
Base Number Product	-	DAC34H84	MAX500	ADS62P42
Type IGBT	-	-	-	-
Reverse Recovery Time (trr)	-	-	-	-
Package / Kaso	-	196-LFBGA	16-DIP (0.300', 7.62mm)	64-VFQFN Exposed Pad
Power - Max	-	-	-	-
Supplier aparato Package	-	196-NFBGA (12x12)	16-PDIP	64-VQFN (9x9)
Td (on / off) @ 25 ° C	-	-	-	-
Current - kolektor (Ic) (Max)	-	-	-	-
operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Ang paglipat Energy	-	-	-	-
Test Kundisyon	-	-	-	-
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)

STGD4M65DF2 Datasheet PDF

I -download ang STGD4M65DF2 PDF Datasheets at STMicroelectronics na dokumentasyon para sa STGD4M65DF2 - STMicroelectronics.

Datasheets: STGD4M65DF2 Datasheet.pdf
Disenyo/Pagtukoy ng PCN: New Lead Frame Design 17/Mar/2023.pdf
PCN Assembly/Pinagmulan: STGDYYY 07/Dec/2017.pdf
PCN packaging: Mult Dev Inner Box Chg 9/Dec/2021.pdf
